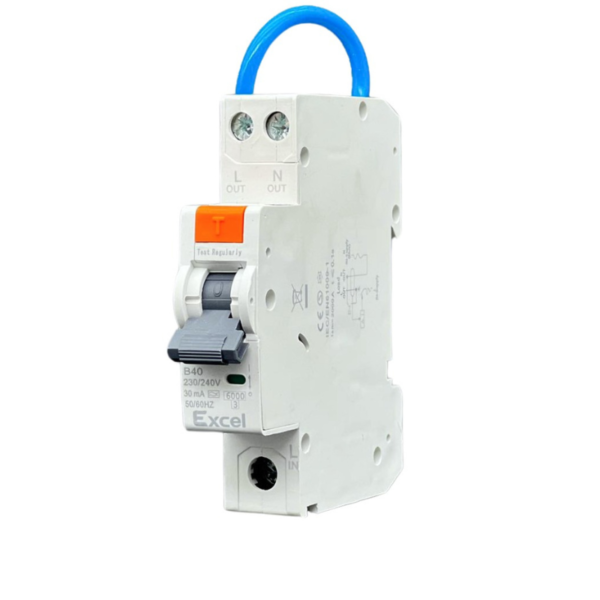

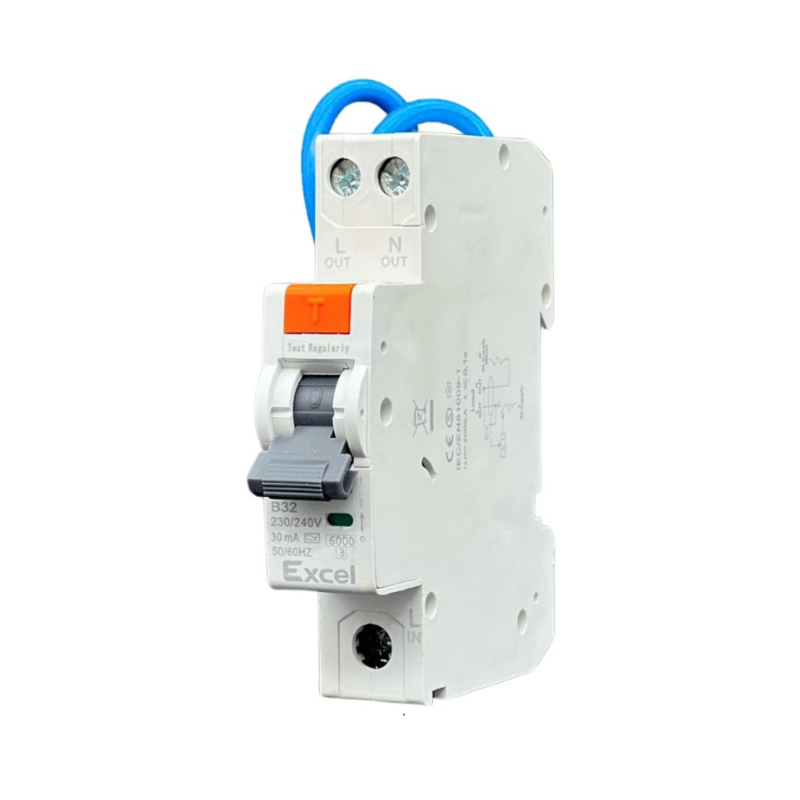

| Part Numbers | RCBO-1XXB-030 |
| Number of Poles | 1P (1 module) |
| Rated Current(In) | 6,10,16,20,32,40 |
| Rate Voltage(Un) | 230/240VAC |
| Breaking Capacity | Icn=6kA Ics=7.5kA |
| Magnetic Tripping Characteristics | B |
| Residual tripping characteristics | AC,A |
| Rated Residual Current | 30mA |
| Mechanical endurance | 30000 |
| Electrical endurance | 10000 |
| Frequency | 50/60Hz |
| Dielectric strength | 2500V |
| Power supply | UP |
| Terminals | Pillar type |
| Cable termination | 25mm² |
| Torque of Screw | 2.5Nm |
| IP degree | IP20 |
| Operating temperature ℃ | -5℃…+55℃ |
| Storage temperature ℃ | -25℃ …+70℃ |
| Standards | IEC/EN61009-1 |
